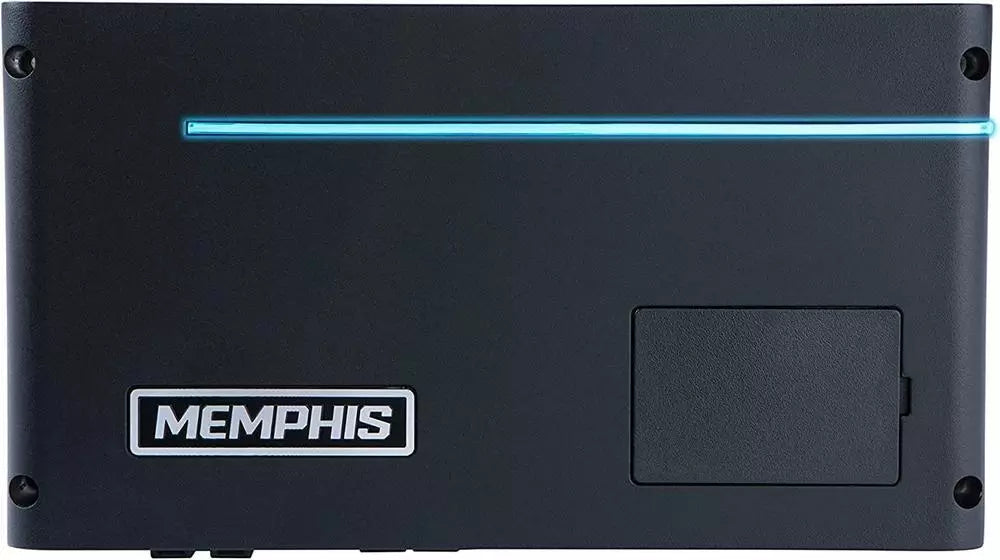

PRX1000.1V

Power Reference amplifiers are the durable, reliable and powerful workhorse of the Memphis line. These amplifiers provide impressive power and performance. The single sided terminal design allows for convenient and easy wire routing to your amplifier for a clean installation. The top mounted control panel can easily be accessed for adjustments to dial in the perfect performance from your Power Reference amplifier. Power Reference mono amplifiers are designed to deliver exceptional power to your subwoofers and are built to last.

Product Details:

• Class D 1 ohms Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 400 watts x 1 channel
• 2 ohms: 700 watts x 1 channel
• 1 ohm: 1000 watts x 1 channel
• Total RMS power output: 1000 watts
• Pulse Width Modulated MOSFET power supply
• LED Power/Protect Light
• Removable magnetic panel conceals top-mounted controls
• Compact aluminum chassis
• Wired remote bass level control included
• Soft start turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
• Low level: 0 - 14.4 volts
• Frequency Response: 20 - 180 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 80 dB
• Variable low-pass filter: 50 - 180 Hz
• Subsonic filter: 20 - 50 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 120A
• 4 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 12-7/8" W x 7-3/8" L x 2-1/16" H
